ISO16028 3/4" NPT  Flat Face Hydraulic Quick Connect Couplers/Couplings Set w/Dust Caps 3/4 NPT Thread

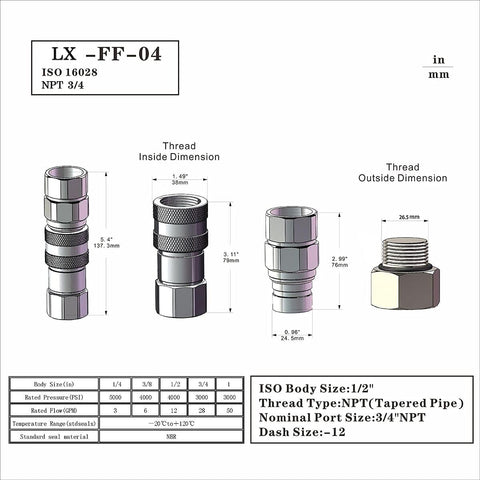

Body Size:

1/2″ Body



Thread Size:

3/4” NPT

Male Hex:

1.42” (36mm)

Female Hex:

1.42” (36mm)

Male Face Diameter:

0.96”

(24.5mm)

FeMale Face Diameter:

1.49” (38mm)

PSI Rating:

5,000

Flow Rate:

12 GPM -23GPM

ISO16028 3/4" NPT  Flat Face Hydraulic Quick Connect Couplers/Couplings Set w/Dust Caps 3/4 NPT Thread



Parker FE Series FEM-502-12FP | FEM-501-12FP
SafewaFFE49 Series FFE491-6 | FFE495-6
Faster FFH Series FFH08 34NPT M | FFH08 34NPT F
Eaton Aeroquip FD89 FD89-1002-12-08 | FD89-1001-12-08
Snap Tite 74 Series 74N8-12F | 74C8-12F
Stucchi FIRG Series 800801009 | 800801008
Dixon HT Series HT4F6 | 4HTF6
Tomco FE Series EP4-31 | EC4-31
DNP PLT4 Series FF-HPG-08-12N-NPT | FF-HPG-08-12C-NPT

New Valve Design and structure

It Can resistance damage from high flow and the pressure of impulse that providing advanced performance. Steel construction, zinc plated with yellow chromate finish. hardened nipples and sleeves and solid barstock construction for maximum resistance to damage from hydraulic and mechanical shock.





Durability:

Durable ball-locking mechanism assures reliable connections every time. A large number of locking balls distributes the work load evenly while providing alignment and swiveling action to reduce hose torque and prolong hose life.
