48mm Hydraulic Flat Face Male Quick Coupler Skid Steer Loader for 4BD4FH Cartridge Manifold Block Aftermarket Replacement Bobcat 7246799

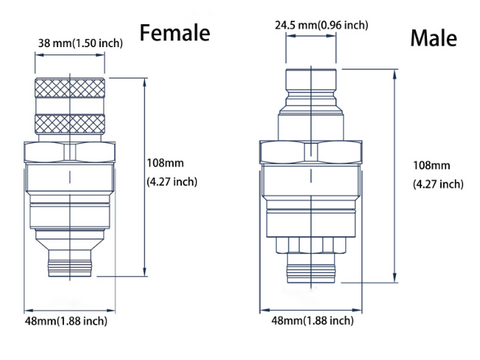

48mm Hydraulic Flat Face Male Quick Coupler Skid Steer Loader
|
Body Size: |
1/2" Body ISO16028 Couplers |
|
|
Thread Diameter: |
48mm |
|
|
Male Hex: |
|
|
|
Female Hex: |
|
|
| 14,500 PSI Burst Rating (Coupled) | ||
|
FeMale Face Diameter: |
|
|
|
PSI Rating: |
5076 |
|
|
Flow Rate: |
|
46mm Hydraulic Flat Face Male Quick Coupler Skid Steer Loader |
||
|
|
Parker 60 Series |
H3-63 | H3-62 |
|
Faster HNV Series |
HNV 38 NPT M | HNV 38 NPT F |
|
|
Stucchi IRB Series |
M IRB38 NPT / 800601005 | F IRB38 NPT / 800601004 |
|
|
Snap-Tite 72 Series |
72N6-6F | 72C6-6F | |
|
Dixon H-Series |
H3F3 | 3HF3 |
|
|
DNP HNV Series |
HNV-06-06-N-NPT | HNV-06-06-C-NPT |
|
|
Safeway S10 Series |
S101-3 | S105-3 |
|
|
Eaton HK Series |
3K21 | 3H21 |
|
|
Kubota |
7J417-66220 | 7J417-66320 |
|
|
Technology Allows Connection Under Pressure.Locking Sleeve To Prevent Accidental Disconnection.Flush Face Valve Design Minimizes Fluid loss And Air Inclusion
|
|
|
Positive Valve: Flat face type hydraulic quick couplings, direct replacement for 6679837 and 6680018, Male and Female Hydraulic Flat Face Quick Coupler, for 4BD4FH Manifold Block (46mm Thread Diameter), allows connection under pressure. Fit for Skid Steer Loaders, Excavators, Telescopic Handlers.
|
 |
