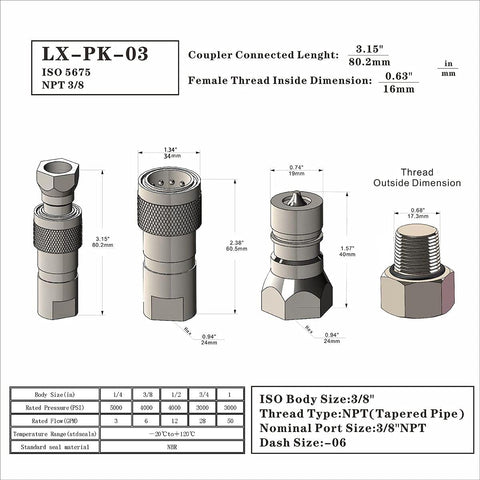

2-Sets 3/8'' Ag NPT ISO5675 Hydraulic Quick Connect Coupling，Pioneer Type, Set w/Dust Cap
2-Sets 3/8'' Ag NPT ISO5675 Hydraulic Quick Connect Coupling，Pioneer Type, Set w/Dust Cap |
||
|
Body Size: |
3/8″ Body |
|
|
Thread Size: |
3/8” NPT |
|
|
Male Face Diameter: Male Hex: |
0.74"(19mm) 0.94"(24mm) |
|
| Poppet Valve |
|
|
| 23,000 PSI Burst Rating (Coupled) | ||
|
FeMale Face Diameter: Female Hex: |
1.34"(34mm) 0.94"(24mm) |
|
|
PSI Rating: |
4,000 |
|
|
Flow Rate: |
12.15GPM |
|
2-Sets 3/8'' Ag NPT ISO5675 Hydraulic Quick Connect Coupling，Pioneer Type, Set w/Dust Cap
|
|
Parker 4000 Series |
Male: 4010-3P | Female: 4050-3P |
|
Faster NV/NS Series |
Male: S41-3P | Female: S25-3P |
|
|
Stucchi IBV Series |
Male: 800101003 / M IR38V NPT | Female: 800101002 / F IR38V NPT | |
|
Snap-Tite 60/ 21 |
Male: 60C6-6M | Female: 60C6-6F |
|
|
Dixon AG Series |
Male: AG3F3-PV | Female: 3AGF3-PV |
|
|
DNP HNV Series |
|
|
|
Safeway S20 Series |
Male: S41-3P | Female: S25-3P |
|
|
Eaton HK Series |
|
|
|
Tomco FE Series |
|
|
Technology Critical Parts Are Hardened For Durability.Dependable Ball-locking Mechanism Holds The mating Halves Together.
|
|
|
Valves Effect Valves Available To Prevent Uncoupled Leakage.Poppet Valves Open Automatically When Coupled, Within Rated Working Pressure, To Keep The Flow Expeditely
|
 |
