2-Sets 1/4" Flat Face Hydraulic Quick Connect Coupling/Coupler Set W/Black Dust Cap 1/4'' NPT Thread

$67.99 USD

Sets: 1-Sets

1-Sets
2-Sets
3-Sets
4-Sets
5-Sets
6-Sets
7-Sets
8-Sets
Add to Wishlist
SKU: LX-2Sets-1/4 NPT-1
Availability : In Stock Pre order Out of stock

masterpaypalshopify paysofortvisa
Description

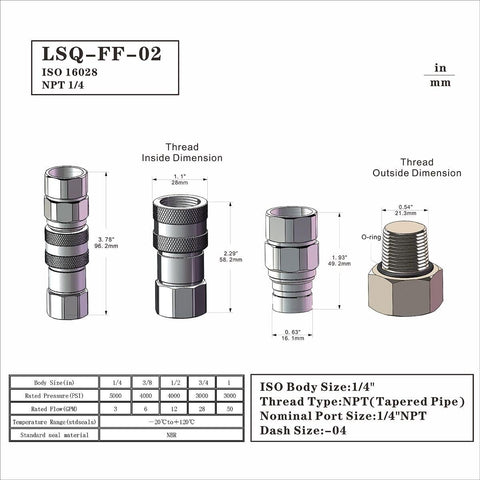

2-Sets  1/4" Flat Face Hydraulic Quick Connect Coupling/Coupler Set W/Black Dust Cap 1/4'' NPT Thread

Body Size:

1/4″ Body



Thread Size:

1/4” NPT

Male Hex:

0.7” (20mm)

Female Hex:

 0.7” (20mm)

Male Face Diameter:

0.63”

(16.1mm)

FeMale Face Diameter:

1.1” (28mm)

PSI Rating:

5,000

Flow Rate:

3-6GPM -23GPM

1/4"  Flat Face Hydraulic Coupling Interchangeable With





Parker FE Series

FEM-252-4FP | FEM-251-4FP

Faster FFH Series

FFH04 14NPT M | FFH04 14NPT F

Stucchi FIRG Series

800801001 | 800801000

Snap Tite 74 Series

74N4-4F | 74C4-4F

Dixon HT Series

HT2F2 | 2HTF2

DNP PLT4 Series

FF-HPG-04-04N-NPT | FF-HPG-04-04C-NPT

Safeway FFE49 Series

FFE491-2 | FFE495-2

Eaton Aeroquip FD89

FD89-1002-04-04 | FD89-1001-04-04

Tomco FE Series

EP2-16 | EC2-16

New Valve Design and structure

It Can resistance damage from high flow and the pressure of impulse that providing advanced performance. Steel construction, zinc plated with yellow chromate finish. hardened nipples and sleeves and solid barstock construction for maximum resistance to damage from hydraulic and mechanical shock.





Durability:

Durable ball-locking mechanism assures reliable connections every time. A large number of locking balls distributes the work load evenly while providing alignment and swiveling action to reduce hose torque and prolong hose life.
