2-Sets 1/4'' Ag ISO5675 Hydraulic Quick Disconnect Coupling，Pioneer Type, Set w/Dust Cap
2-Sets 1/4'' Ag ISO5675 Hydraulic Quick Disconnect Coupling，Pioneer Type, Set w/Dust Cap |
||
|

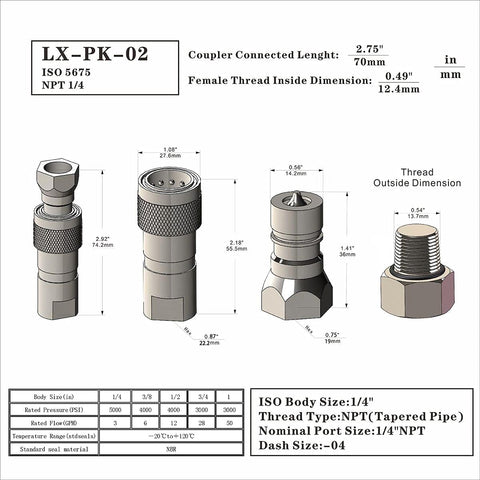

Body Size: |
1/4″ Body |
|
|
Thread Size: |
1/4” NPT |
|
|
Male Face Diameter: Male Hex: |
0.56"(14.2mm) 0.75"(19mm) |
|
| Poppet Valve |
|
|
| 23,000 PSI Burst Rating (Coupled) | ||
|
FeMale Face Diameter: Female Hex: |
1.08"(27.6mm) 0.87"(22.2mm) |
|
|
PSI Rating: |
5,000 |
|
|
Flow Rate: |
6.3GPM |
|
2-Sets 1/4'' Ag ISO5675 Hydraulic Quick Disconnect Coupling，Pioneer Type, Set w/Dust Cap
|
|
Parker 4000 Series |
Male: 4010-2P | Female: 4050-2P |
|
Faster NV/NS Series |
Male: NV 14 NPT M | Female: NV 14 NPT F |
|
|
Stucchi IBV Series |
Male: 800101001 / M IR14V NPT | Female: 800101000 / F IR14V NPT | |
|
Snap-Tite 60/ 21 |
Male: 60C4-4M | Female: 60C4-4F |
|
|
Dixon AG Series |
Male: AG2F2-PV | Female: 2AGF2-PV | |
|
DNP HNV Series |
|
|
|
Safeway S20 Series |
Male: S41-2P | Female: S25A-2P |
|
|
Eaton /Aeroquip FD42 |
Male: FD42–1002–04–04 | Female: FD42–1001–04–04 | |
|
Tomco FE Series |
|
|
Technology Critical Parts Are Hardened For Durability.Dependable Ball-locking Mechanism Holds The mating Halves Together.
|
|
|
Valves Effect
Valves Available To Prevent Uncoupled Leakage.Poppet Valves Open Automatically When Coupled, Within Rated Working Pressure, To Keep The Flow Expeditely
|
 |
