1-Set 1/2'' Ag ISO5675 Carbon Steel Hydraulic Quick Connect Tractor Coupling/Coupler Poppet Valve，Pioneer Type, Set w/Dust Cap
1-Set 1/2'' Ag ISO5675 Carbon Steel Hydraulic Quick Connect Tractor Coupling/Coupler Poppet Valve，Pioneer Type, Set w/Dust Cap |
||
|

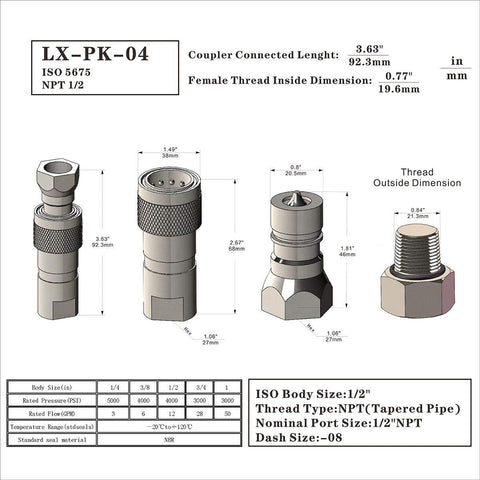

Body Size: |
1/2″ Body |
|
|
Thread Size: |
1/2” NPT |
|
|
Male Face Diameter: |
0.8"(20.5mm) |
|
| Poppet Valve |
|
|
| 23,000 PSI Burst Rating (Coupled) | ||
|
FeMale Face Diameter: |
1.49"(38mm) |
|
|
PSI Rating: |
5,000 |
|
|
Flow Rate: |
12 GPM -24GPM |
|
1-Set 1/2'' Ag ISO5675 Carbon Steel Hydraulic Quick Connect Tractor Coupling
|
|
Parker 4000 Series |
Male: 8010-4 | Female: 4050-4 |
|
Faster NV/NS Series |
Male: NV 12 NPT M | Female: NV 12 NPT F |
|
|
Stucchi IBV Series |
Male: 800501005 / M IR12V NPT | Female: 800501004 / F IR12V NPT | |
|
Snap-Tite 72 Series |
|
|
|
Dixon AG Series |
Male: AG4F4-PV | Female: 4AGF4-PV |
|
|
DNP HNV Series |
|
|
|
Safeway S20 Series |
Male: S71-4 | Female: S25-4 |
|
|
Eaton HK Series |
|
|
|
Tomco FE Series |
|
|
Technology Machined From Solid Steel Barstock For Durability.The LX-S2 Series Quickly Couplers Critical parts are hardened for durability.Dependable ball-locking mechanism holds the mating halves together.
|
|
|
Positive Valve: Poppet valves available to prevent uncoupled leakage.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.Dependable ball-locking mechanism holds the mating halves together.
|
 |
